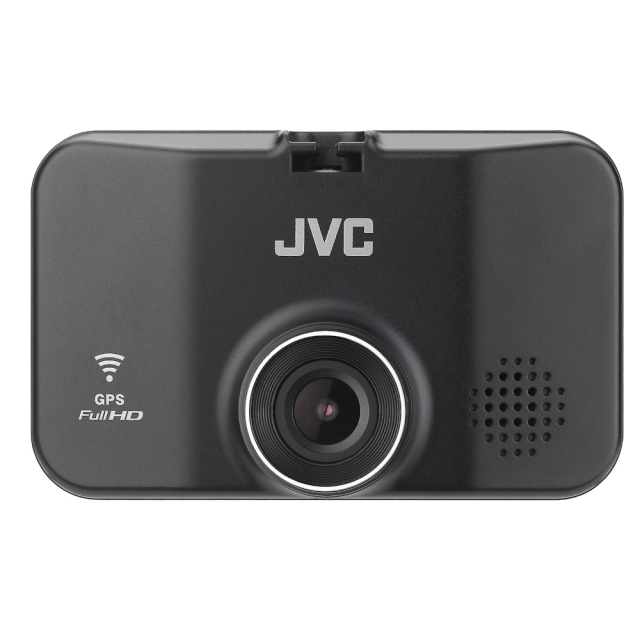

JVC DR305W DASHBOARD CAMERA

JVC DR305W DASHBOARD CAMERA

HD dash cam with 2.7" display, GPS, and Wi-Fi

Built-in WDR to Respond to Sudden Brightness Changes

The built-in WDR (Wide Dynamic Range) helps to reduce headlight glare or shadows that may occur in high contrast situations, such as in a backlit environment, or near the entrance or exit of a tunnel.

Smartphone Linkage via Wi-Fi

Simply install the “JVC DVR Link” app on your smartphone and you'll be able to connect the KV-DR305W to your smartphone via Wi-Fi. A variety of operations can be controlled easily from your smartphone. Available functions include “Preview” to view streamed images while recording on your smartphone, still image recording, downloading of recorded data to your smartphone, and controlling various settings of the KV-DR305W.

Event Recording Compatible

The KV-DR305W offers three recording modes to accommodate various situations. 1: “Continuous Recording*” to automatically record and stop in conjunction with the engine ON/OFF, 2: “Manual Recording” to start recording anytime you want and save it as data that cannot be overwritten, and 3: “Event Recording” to automatically start recording when a sudden impact or a sudden speed change is detected by the "G-Force sensor".

G-Force Sensor for Automatic Shock Detection

The G-Force Sensor is built-in to detect impact to the vehicle body. Its 3-axis sensor is able to detect sudden movements from three directions: front/back, left/right, and top/bottom.

GPS to Record Location Information

The KV-DR305W is also equipped with a GPS system that measures your vehicle's location information such as speed, latitude, and longitude. The driving record can be displayed on the dedicated PC linked software.

F2.0 Wide Angle Lens

The KV-DR305W features a wide angle lens of 114°. With a secured wide-angle view, you can judge the occurrence of an accident more objectively. The F2.0 lens performance assures precise, high-quality images.

SPECIFICATIONS

Image Sensor

Type: 1/2.7 Color CMOS sensor

Lens

Aperture: F2

View Angle: Horizontal-98 degree, Vertical-52 degree, Diagonal-114 degree

Monitor

Type: Color

Size: 2.7 inches color TFT

Memory

External: Yes

Number of Slots: 1

External Memory Size: Max 32GB

External Memory Type: microSDHC card (Class 10 or above

File Format

Video: H.264 (MP4_

Photo: JPEG (Max. 1920 x 1080)

Resolution

Video Resolution: 1920 x 1080

Frame Rate: 30fps

Photo Resolution: 2M Pixel

Emergency Recording

Recording Preservation Timing: Continuous / Event

Video Crip Length: 1 / 3 / 5 min.

WiFi

Type: Built-in

General

Collision sensitivity: 0.5G to 3G (0.5G step)

Operating voltage: DC 5.0V

Current consumption: 480mA (Max. 1A)

Mount Bracket: Yes, (double-sided tape)

USB Port: Yes, mini USB-B type

USB Cable Length: 0 Inch

Weight-Dimensions

Dimensions Dashcam: H 0 x W 0 x D 0 Inch

Weight Dashcam: 3.1oz
