RYDEEN TOMBO 360X REARVIEW MIRROR

RYDEEN TOMBO 360X REARVIEW MIRROR w/BUILT-IN DASH CAM

The TOMBO 360X is a universal touchscreen 10-inch frameless rearview mirror with built-in dash cam/HD monitor with 360 surround video recording features. Users can then choose to display the front of the car, sides of the car and the rear seat, for monitoring passengers. Frameless Infinity Polished Edge Mirror Design for clean look, using optic bonding for monitor assembly with no air gap between the front glass and TFT screen for ultra-high brightness, and high color contrast viewing. Includes an auto sensing photo sensor for TFT screen brightness control, so automatically set to maximum brightness during daytime and less bright during night. Users can swipe left and right on the mirror to view the particular perspective they wish to see, with split screen views of multiple angle options, TOMBO 360X can show a 360-degree view simultaneously on all multiple view selections for complete viewing coverage

The TOMBO 360X comes with a proximity sensor, where it will automatically record if an object or person comes within 10 feet to your vehicle. There are also LED indicators on the mirror itself enabling blind spot detection by adding RYDEEN Blind Spot Radar Safety products with internal LED indicators (connector cable P/N EXT-026 and blind spot products are sold separately). Making the installation easy by eliminating the need to remove the A-pillar and drilling holes for installers.

The TOMBO 360X also includes a USB-Type C connector, to easily transfer your recorded videos to an extrernal storage device. Video playback will show location, time and date when GPS is connected.

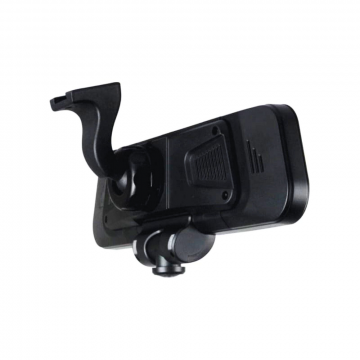

TOMBO 360X includes a windshield mount (standard VSM-AV), AHD rear camera for backup view (video auto-trigger switching, viewing angle adjustable), hardwire cable, and proximity sensor. Call our technical support for details.

• Windshield Install Backpack Adaptor with replacing OEM mirror
• Rear AHD Camera allows for backup view (auto trigger) and rearview (streaming view) also the video records on the 2nd channel of TOMBO 360X DVR recording
• Proximity Sensor for Parking Monitor
• Hardwire Power Cable allows Reverse Trigger, Last View Setting Memory, LED to RYDEEN Blind Spot (BSD) Kits (P/N EXT-026 connection cable sold separately), Continuous Power to 2nd Memory Drive (SSD) after ACC is off

SPECIFICATIONS

Basic Parameters

• Video Input (backup camera): AHD
• System Language: English, Japanese, French, Spanish
• Screen Dimensions: 9.55 inches
• Touch Screen Type: Resistive
• Front Camera: 1920*1920/ H360°/27.5 fps
• Audio Line-Out: Built-in 8Ω/ 2W speaker* 1 for audio/voice playback
• Audio Power (Internal): 4Q2W
• Power Supply Voltage: DC 9V to 24V
• Rated Current: 600mA
• Super Capacitor Size: 8.5*17*32MM
• System: Linux
• Storage: Built-in Micro-SD slot, External backup SSD
• Operational Temperature: -10℃~ +60℃
• Storage Temperature: -30℃~ +70℃
• Operational Humidity: 45%~80%RH
• Storage Humidity: 30%~90%RH

GPS Hardware Parameters

• Date Update Rate: 1Hz
• Warm Startup Time: 1 Sec (average)
• Cold Startup Time: <33 Sec (average)
• Maximum Speed Rate: <280 m/s
• GPS Antenna Gain: 30dB
• Power Voltage: 3.3V
