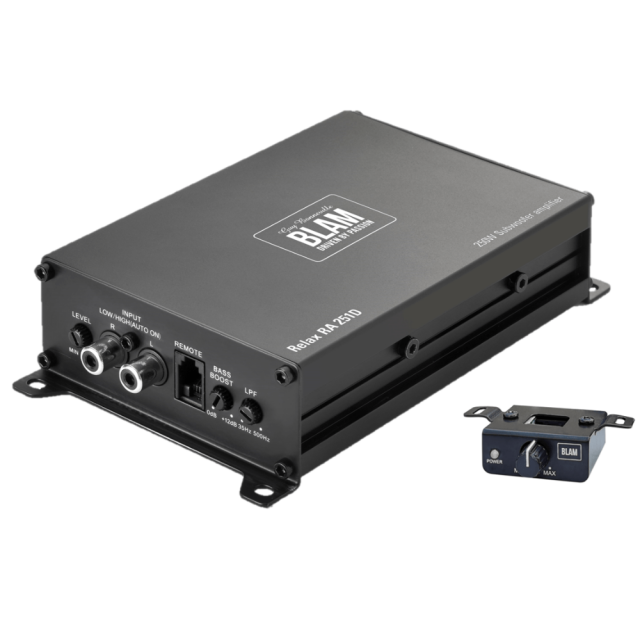

BLAM AUDIO RELAX SERIES - MINI AMPLIFIERS

Ultra-compact D Class mono amplifier

Compatible with OEM head units

Very easy to install and compatible with all the original car radios this ultra-compact amplifier allows you to add a subwoofer to your installation for an incomparable listening comfort. Even while maintaining a reasonable level of listening, the sound will take on more depth and your travels will be transformed into a pure moment of pleasure.

Composition

Technical specifications

• High-level inputs with auto-turn on
• RCA low-level inputs: 0.3 V/15 V
• Power (4 Ω): 150 Watts RMS
• Power (2 Ω): 250 Watts RMS
• Low-pass crossover: 35 Hz — 500 Hz (12 dB/octave)
• Frequency response : 15 Hz – 500 Hz
• Bass boost adjustable +12 dB (45 Hz)
• Signal/noise ratio: 90 dB
• Protections: short circuit / low impedance / reversal of polarity / heat protection
• External wired remote control
• Dimensions (L x H x W) : 6.2″ × 1.4″ x 3.6″ — 158 mm x 36 mm x 91.4 mm

500 W ultra-compact D Class mono amplifier

Compatible with OEM head units

Very easy to install and compatible with all the original car radios this ultra-compact amplifier allows you to add a subwoofer to your installation for an incomparable listening comfort. Even while maintaining a reasonable level of listening, the sound will take on more depth and your travels will be transformed into a pure moment of pleasure …

Composition

• High level inputs with auto turn on
• RCA low level input: 0.3 V
• RCA high level input: 15 V
• RMS Power (4 Ω): 300 W
• RMS Power (2 Ω): 500 W
• Low pass crossover: 35 Hz – 500 Hz (12 dB/octave)
• Frequency response : 15 Hz – 500 Hz
• Bass boost: 0 – 12 dB at 45 Hz
• Signal/noise ratio > 90 dB
• Protections: short circuit / low impedance / reversal of polarity / heat protection
• Dimensions (L x W x H): 198 x 91.4 x 36 mm – 7.8’’ x 3.6’’ x 1.4’’

To design this powerful, robust and compact amplifier, we have used the latest class D audio amplifier technologies. This amplifier employs SMD (surface mount device) electronics components, reducing the overall size while still providing high-end audio performance. Thanks to its high efficiency, it will provide the power required to reproduce the full dynamics of your favorite recording combined with unheard of reliability.

Composition

• High level inputs with auto turn on
• RCA low level input : 0.5 V
• RCA high level input : 15 V
• RMS Power (4 Ω ): 2 x 80 W
• RMS Power (2 Ω): 2 x 120 W
• RMS Bridged Power (4 Ω ): 1 x 240 W
• Low pass crossover: 120 Hz (fixed) (12 dB/octave)
• High pass crossover: 100 Hz (fixed) (12 dB/octave)
• Frequency response: 20 Hz – 22 kHz
• Signal / noise ratio > 90 dB
• Protections: short circuit / low impedance / reversal of polarity / heat protection
• Remote control
• Dimensions (L x l x H): 160 mm x 91,4 mm x 38 mm – 6.3’’x 3.6’’x 1.4’’

Ultra-compact 4 channels amplifier

Compatible with OEM head units

Strengthen your OEM sound system with this ultra-compact 4-channel amplifier using class D technology. Easy to install and compatible with the original car radios, it generates a significant power gain that greatly improved the listening comfort even at moderate level. Associated with the speakers Relax 2 Ohms, it then allows to obtain a superb dynamic that will give life to all your favorite songs

Composition

• Auto-turn on
• RCA low level and high-level inputs: 0.3V /15V
• RMS Power (4 Ω): 4 × 50 Watts RMS
• RMS Power (2 Ω): 4 × 75 Watts RMS
• Bridged Power (4 Ω): 2 × 150 Watts RMS
• Low pass crossover: 120 Hz (12 dB/octave)
• High pass crossover: 100 Hz (12 dB/octave)
• Frequency response : 10 Hz – 22 kHz
• Signal/noise ratio: > 90 dB
• Protections: short circuit / low impedance / reversal polarity / heat protection
• Dimensions (L x W x H): 188 × 91.4 × 36 mm – 7.4’’ × 3.6’’× 1.4’’
