BLAM AUDIO RELAX SERIES - COAXIAL SPEAKERS

HI-EFFICIENCY 2 Ω 100 MM (4”) 2-WAY COAXIAL SPEAKERS

• Integrated 6 dB/Oct. cross-over
• Max power 80 W – Nom. Power 40W
• Frequency response: 100 Hz- 28 kHz
• Sensitivity 90 dB – Impedance 2 Ω

Woofer featuring a high-quality coated cellulose pulp membrane, combined with peripheral butyl suspension. The generous size of the magnet (70×15 mm) contributes to the speaker gaining very high efficiency and a high-power handling. The 2 Ω voice coil doubles the power of all OEM car radios. 20 mm (3/4”) silk dome tweeter features an ultra-powerful neodymium motor, a soft dome and a very lightweight voice coil due to the use of copper-aluminium alloy (CCAW) wire for hi efficiency.

HI-EFFICIENCY 2 Ω SPEAKER SYSTEM 2 WAYS, 130 MM (5.25”) WOOFER

• 130 mm (5.25”) coaxial
• integrated 6 dB/oct cross-over

130 mm (5.25”) woofer featuring a high-quality coated cellulose pulp membrane, combined with peripheral butyl suspension. The generous size of the magnet (80×15) contributes to the achievement of an optimal QTS, a high level of sensitivity and high power handling. The soft dome tweeter features a neodymium magnet and 20 mm CCAW (copper-aluminum alloy) voice coil.

Replace your OEM speakers and “Relax” listening to your favorite music. Benefit from 25 years of experience, Relax systems feature the “French Sound” and are designed to provide incredible performance and set a new reference in their category. Because of their high efficiency and low impedance they provide detailed, powerful sound when used with or without an amplifier. Transform your mundane drive into a musical journey…

BLAM wishes you long hours of enjoyment!

> TECHNICAL CHARACTERISTICS

• Max power 120 W / RMS 60 W
• Frequency response 80 Hz – 20 KHz
• Sensitivity 91 dB
• Impedance 2 Ohms
• 20mm soft dome tweeter

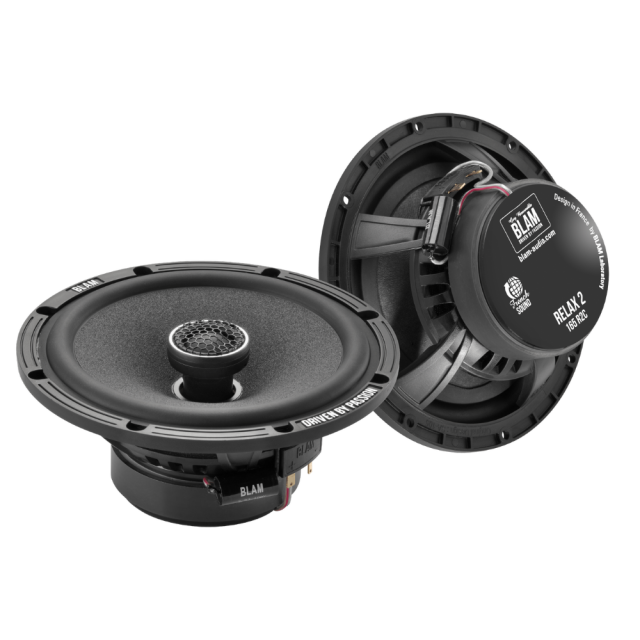

BLAM AUDIO Relax 2 165 R2C 6,5″ Coaxial Speaker

This system includes two 165 mm (6.5”) woofers, two coaxial 20 mm (3/4”) soft dome tweeters and two integrated 6 dB/octave crossovers.

• High sensitivity 2-way coaxial system
• 165 mm (6.5’’) woofer
• Max power 150 W – Nominal power 75 W
• Frequency response 60 Hz – 25 kHz
• Sensitivity 95 dB – Impedance 2 Ω

570 RC ‘5”x7”/6”x8”) 2-way car speakers

• Max power 120 W – Nom. Power 60WF
• Requency response: 75 Hz- 28 kHz
• Sensitivity 94 dB – Impedance 2 Ω
• Hi-efficiency 2 Ω
• Integrated 6 dB/Oct. cross-over

Woofer featuring a high-quality coated cellulose pulp membrane, combined with peripheral butyl suspension. The generous size of the magnet (85×17 mm) contributes to the speaker gaining very high efficiency and a high-power handling. The 2Ω voice coil doubles the power of all OEM car radios. 20 mm (3/4”) silk dome tweeter features an ultra-powerful neodymium motor, a soft dome and a very lightweight voice coil due to the use of copper-aluminium alloy (CCAW) wire for high efficiency.

COMMON CHARACTERISTICS

• Max power 150 W – Nom. Power 75W
• Frequency response: 55 Hz- 28 kHz
• Sensitivity 93 dB – Impedance 2 Ω



Woofer featuring a high-quality coated cellulose pulp membrane, combined with peripheral butyl suspension. The generous size of the magnet (85x17mm) contributes to the speaker gaining very high efficiency and a high-power handling. The 2Ω voice coil doubles the power of all OEM car radios. 20 mm (3/4”) silk dome tweeter features an ultra-powerful neodymium motor, a soft dome and a very lightweight voice coil due to the use of copper-aluminium alloy (CCAW) wire for hi-efficiency (25 mm (1’’) silk dome tweeter on 690RC).




Optional grill available (GR690).




690 RC Hi-efficiency 2 Ω 6”x9” 2-way car speakers

• Woofer coaxial
• Integrated 6 dB/Oct. cross-over
