AUDIOTEC FISCHER HELIX AMPLIFIED DSP

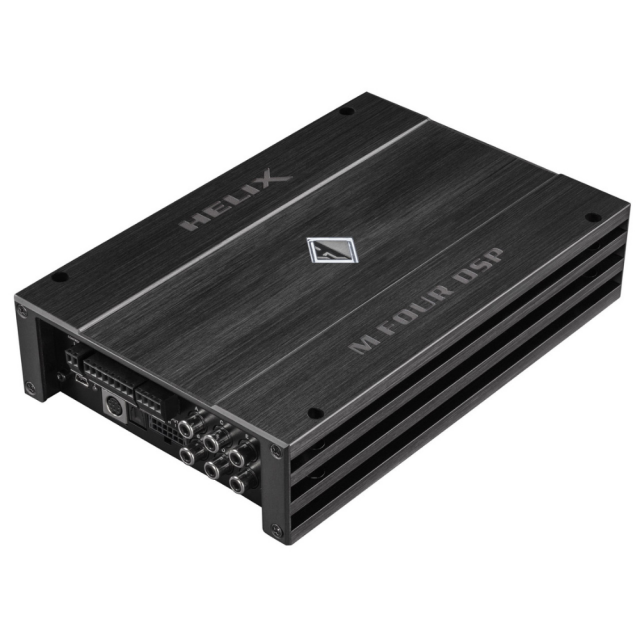

That rocks – the new M FOUR DSP

The M FOUR DSP is more than “just” another four-channel amplifier – rather, despite its small dimensions, you are dealing with a powerful control center that has not less than a total of ten processed DSP channels. In addition, the amplifier delivers plentiful output power with generously 100 Watts RMS per channel into both 4 Ohms and 2 Ohms load. Finally its awesome price performance ratio in combination with the fantastic feature set will ensure bright eyes.

Tonally absolutely HELIX!

Compromises in terms of sound quality have no place in a HELIX product – and that's why the M FOUR DSP is equipped with all the finesse for perfect sound. Of course, excellent and separate AD and DA converters are just as natural as on the DSP circuit board, which is completely manufactured in Germany, you will find only excellent, separate AD and DA converters as well as an extremely powerful DSP from Analog Devices. In addition, the six pre-amplifier outputs with 6 Volts output voltage provide more than enough level to drive any additional amplifier.

Maximum flexibility

Even the internal amplifier section of the M FOUR DSP is extremely variable – it can either be operated in 4-channel mode or, thanks to its bridging capability, can also be configured as a 3-channel or even 2-channel amplifier. But that's not all – in connection with the six pre-amplifier outputs, the sound system can be expanded in a diverse manner and upgraded to up to 10 channels. In combination with other amplifiers of the M series (M ONE X, M ONE, M FOUR or M SIX), there are more than enough possibilities to expand the number of power channels. This makes complex, yet affordable and, above all, space-saving multi-channel systems with enormous performance possible.

Virtual Channel Processing – that´s how signal routing works today

Many DSP channels need to be managed and configured properly – so there was no question that the M FOUR DSP is also equipped with Audiotec Fischer's innovative virtual channel processing. The adaptation to modern OE sound systems via an increasing number of inputs has a significant impact on the complexity of the signal routing inside the amplifier. Especially when several input signals are mixed together and then split again into multi-way systems, conventional routing concepts quickly reach their limits, both in terms of implementation and usability. Audiotec Fischer's new multi-stage "Virtual Channel Processing", in conjunction with the recognized user-friendly DSP PC-Tool software makes it easy to realize even highly complex system configurations. Besides, it allows to freely assign our proprietary FX sound features such as "RealCenter" or "Augmented Bass Processing".

The plus in speed – thanks to ACO

Faster is better – the particularly powerful 32 Bit ACO platform takes over all control tasks and ensures significantly more speed, especially for data communication with our DSP PC-Tool software but also for the lightning-fast switching between up to ten sound setups. But ACO offers much more – fantastic sound effects such as Augmented Bass Processing or RealCenter are implemented as well as a channel-separated Input EQ including the Input Signal Analyzer (ISA) for easy analysis and compensation of input signals of OE radios that already include an “ex works” sound setup.

Compact, cool and absolutely practical

Despite its vast range of functions and huge output power the M FOUR DSP presents itself in the same classic, compact HELIX design with distinctive lines like a HELIX M FOUR or M ONE. Thanks to its Class D amplifier technology, it keeps a "cool head" even at full power. And thanks to features such as start-stop capability, ADEP.3 circuit and power save mode, it is also ideally equipped for the now everyday challenges of OEM integration.

Features

• Up to 135 Watts RMS max. output power per channel into 4 & 2 Ω
• Extremely powerful 64 Bit “fixed point” Audio DSP and state-of-the-art 32 Bit AD and DA signal converters from AKM
• ACO – Advanced 32 Bit CoProcessor platform for enhanced system and DSP features like:
• ISA (Input Signal Analyzer) and InputEQ for easy analysis and compensation of input signals
• SFX sound effects – Augmented Bass Processing, StageXpander, RealCenter & Co.
• Smart 6-channel highlevel input with ADEP.3 circuit
• Six RCA / Cinch line outputs with max. 6 Volts output voltage
• Virtual Channel Processing (VCP) allows even more flexible configuration for highly complex sound systems
• Bridgeable amplifier channels for driving powerful woofer or subwoofer
• DSP-board manufactured in Germany

That rocks – the new M SIX DSP

The M SIX DSP is more than “just” another six-channel amplifier – rather, despite its small dimensions, you are dealing with a powerful control center that has not less than a total of ten processed DSP channels. In addition, the amplifier delivers plentiful output power with generously 100 Watts RMS per channel into both 4 Ohms and 2 Ohms load. Finally its awesome price performance ratio in combination with the fantastic feature set will ensure bright eyes.

Tonally absolutely HELIX!

Compromises in terms of sound quality have no place in a HELIX product – and that's why the M SIX DSP is equipped with all the finesse for perfect sound. Of course, excellent and separate A/D and D/A converters are just as natural as on the DSP circuit board, which is completely manufactured in Germany, you will find only excellent, separate A/D and D/A converters as well as an extremely powerful DSP from Analog Devices. In addition, the four pre-amplifier outputs with 6 Volts output voltage provide more than enough level to drive any additional amplifier.

Maximum flexibility

Even the internal amplifier section of the M SIX DSP is extremely variable – it can either be operated in 6-channel mode or, thanks to its bridging capability, can also be configured as a 5-channel, 4-channel or even 3-channel amplifier. But that's not all – in connection with the four pre-amplifier outputs, the sound system can be expanded in a diverse manner and upgraded to up to 10 channels. In combination with other amplifiers of the M series (M ONE X, M ONE, M FOUR or M SIX), there are more than enough possibilities to expand the number of power channels. This makes complex, yet affordable and, above all, space-saving multi-channel systems with enormous performance possible.

Virtual Channel Processing – that´s how signal routing works today

Many DSP channels need to be managed and configured properly – so there was no question that the M SIX DSP is also equipped with Audiotec Fischer's innovative virtual channel processing. The adaptation to modern OE sound systems via an increasing number of inputs has a significant impact on the complexity of the signal routing inside the amplifier. Especially when several input signals are mixed together and then split again into multi-way systems, conventional routing concepts quickly reach their limits, both in terms of implementation and usability. Audiotec Fischer's new multi-stage "Virtual Channel Processing", in conjunction with the recognized user-friendly DSP PC-Tool software makes it easy to realize even highly complex system configurations. Besides, it allows to freely assign our proprietary FX sound features such as "RealCenter" or "Augmented Bass Processing".

The plus in speed – thanks to ACO

Faster is better – the particularly powerful 32 Bit ACO platform takes over all control tasks and ensures significantly more speed, especially for data communication with our DSP PC-Tool software but also for the lightning-fast switching between up to ten sound setups. But ACO offers much more – fantastic sound effects such as Augmented Bass Processing or RealCenter are implemented as well as a channel-separated Input EQ including the Input Signal Analyzer (ISA) for easy analysis and compensation of input signals of OE radios that already include an “ex works” sound setup.

Compact, cool and absolutely practical

Despite its vast range of functions and huge output power the M SIX DSP presents itself in the same classic, compact HELIX design with distinctive lines like a HELIX M SIX. Thanks to its Class D amplifier technology, it keeps a "cool head" even at full power. And thanks to features such as start-stop capability, ADEP.3 circuit and power save mode, it is also ideally equipped for the now everyday challenges of OEM integration.

Features

• Up to 130 Watts RMS max. output power per channel into 4 & 2 Ω
• Extremely powerful 64 Bit “fixed point” Audio DSP and state-of-the-art AD and DA signal converters
• ACO – Advanced 32 Bit CoProcessor platform for enhanced system and DSP features like:
• ISA (Input Signal Analyzer) and InputEQ for easy analysis and compensation of input signals
• SFX sound effects – Augmented Bass Processing, StageXpander, RealCenter & Co.
• Smart 6-channel highlevel input with ADEP.3 circuit
• Four RCA / Cinch line outputs with max. 6 Volts output voltage
• Virtual Channel Processing (VCP) allows even more flexible configuration for highly complex sound systems
• Bridgeable amplifier channels for driving powerful woofer or subwoofer
• DSP-board manufactured in Germany

HELIX P SIX DSP MK2

The HELIX P SIX DSP MK2 6-channel amplifier is not built to solely deliver loads of clean power; it also incorporates a cutting-edge 8-channel DSP with outstanding processing power. This amalgamation sets a completely new standard with its “Ultra HD Class D” amplifier technology.
Thanks to its 96 kHz sampling rate and an extended audio bandwidth of more than 40 kHz, this technological feat of precision engineering raises the bar in terms of sound quality.
If we put all that aside for a moment, versatility was another major milestone to be reached during the development process. Therefore, we are happy to introduce HEC. The HELIX Extension Card (HEC) slot allows you to extend the devices possibilities well beyond the commonplace RCA jacks. Interfaces like a Bluetooth® Audio Streaming module or a High Resolution Audio USB soundcard have been crafted to give you more options than ever.
Two fully-processed RCA outputs provide connectivity for daisy-chaining more amplifiers without a need for a second DSP.
The configuration of the internal 64 Bit DSP could hardly be easier thanks to the professional and user-friendly DSP PC-Tool software that offers almost unlimited sound tuning features.
Despite this impressive feat of engineering, the P SIX DSP MK2 has not shed its HELIX design heritage; it still has the clean design while remaining very compact for ease of installation.

Features

• New “Ultra HD Class D” concept which combines the high-end sound quality of Class AB technology with the benefits of Class D amplifiers
• Full audio bandwidth up to more than 40 kHz thanks to 96 kHz sampling rate
• Cutting-edge, extremely powerful “fixed point” Audio DSP with 64 Bit resolution and 1.2 billion MAC operations per second
• 24 Volts compatible without the need to make any changes to the unit
• Six speaker outputs with up to 230 Watts RMS into 2 Ohms
• Two processed RCA outputs
• Inputs: 6 x RCA, 6 x Highlevel with up to 20V RMS input sensitivity, optical SPDIF input
• Smart highlevel input with ADEP circuit
• HELIX Extension Card slot (HEC) for additional input / output modules like Bluetooth® Audio Streaming, High Resolution Audio Streaming via USB etc.
• Compact design with low heat dissipation thanks to ­extraordinary efficiency
• Automatic Remote switch

HELIX V EIGHT DSP MK2

The new multi-tool for professionals

The small addition in the product name makes the big difference – the V EIGHT DSP MK2 is the logical evolution of its already more than impressive predecessor. Same look as before but in the inside we brought in all of our expertise to substantially optimize the hardware. The result is an 8-channel amplifier with ten processed DSP channels that is unrivalled in many ways.

Extra speed – thanks to ACO

Faster is better – the particularly powerful 32 Bit ACO platform takes over all control tasks and ensures the decisive speed increase, especially for data communication with our DSP PC-Tool software but also for the lightning-fast switching between up to ten sound setups. But ACO offers much more – fantastic sound effects such as Augmented Bass Processing or RealCenter are implemented as well as a channel-separated Input EQ including the Input Signal Analyzer (ISA) for easy analysis and compensation of input signals of OE radios.

New signal converters for optimized sound quality

Instead of a combined codec, the new V EIGHT DSP MK2 uses separate AD and DA converters of the latest generation from Asahi Kasei with a native resolution of 32 Bit. This ensures maximum signal resolution in the entire signal path from input to output – and thus also guarantees optimal sound quality.

Virtual Channel Processing – that´s how signal routing works today

The adaptation to modern OE sound systems via an increasing number of inputs has a significant impact on the complexity of the signal routing inside the amplifier. Especially when several input signals are mixed together and then split again into multi-way systems, conventional routing concepts quickly reach their limits, both in terms of implementation and usability. Audiotec Fischer's new multi-stage "Virtual Channel Processing", in conjunction with the recognized user-friendly DSP PC-Tool software makes it easy to realize even highly complex system configurations. Besides, it allows to freely assign our proprietary FX sound features such as "RealCenter" or "Augmented Bass Processing".

Maximum connectivity

More and more cars are equipped with factory-provided sound systems. Most of them contain a multi-channel amplifier that cannot be replaced by another amplifier. The adaptation to such a configuration not only requires a lot of input channels but also a particularly wide adjustment range for the input sensitivity. Therefore, the V EIGHT DSP MK2 offers both six RCA / Cinch inputs and eight highlevel inputs with a maximum input voltage from 4 V to 32 V. In addition the V EIGHT DSP is of course also equipped with the latest generation ADEP.3 circuit.

Power pack in a noble design

Despite its further increased feature set and up to 160 Watts RMS output power per channel (@ 2 Ohms) the V EIGHT DSP MK2 presents itself in the classic, clean HELIX design which provides ideal preconditions for a quick and easy integration. High-tech performance could hardly be more noble and elegant!
